seca TRU Pro
Product Number ONIHFINTNNMedical Body Composition Analyzer with optional ultrasonic height measurement
Dispatched within 1-3 working days
Quick Overview
Description
Technical Data
Precision
- Basic
- Advanced
- Premium
Key-Technical Data
BIA measuring method8-point Bioelectrical Impedance Analysis
BIA measurement segmentsRight arm, left arm, right leg, left leg, right half of body, left half of body, torso
BIA measuring period24 seconds
BIA measuring frequency1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
Scope of Delivery
- BIA platform seca mBCA 552
- BIA handrail seca mBCA 549

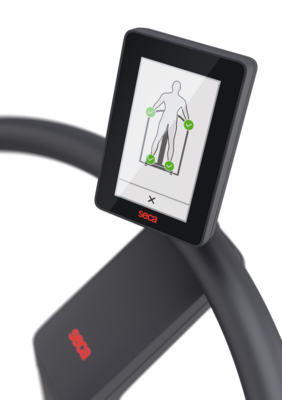

- ID-Display™
- Power adapter
Product Properties
- Unique accuracy through whole body MRI validation (skeletal muscle mass) and 4C model
Validation studies are bundled and transparently published in the European Journal of Clinical Nutrition 2013/2017, among others
- Comprehensive, personalized normal ranges based on over 3,000 multiethnic subjects
- Specially developed formulas for children over 5 years and 1.30 m as well as people over 65 years and patients with obesity

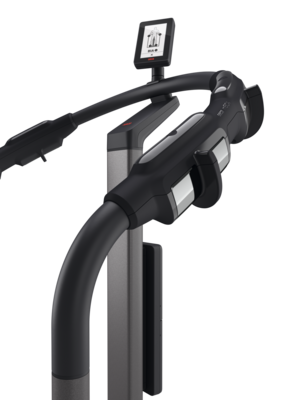

- Handrail with fixed handle positions: measurements are reproducible and reliable

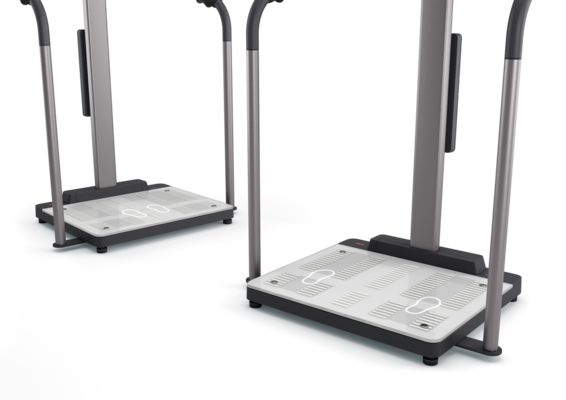

- Foot-mounted LEDs embedded in the platform show the various positions and give patients a sense of safety and orientation
- Cloud-based software with easily understandable graphics that guarantees a complete picture of the body composition
- Optional: precise and contactless height measurement in seconds using the latest ultrasonic technology
Developed in conjunction with medical users
The seca mBCA Pro is the BIA solution for the exceptionally accurate and user-friendly determination of body composition. Its unique validation against whole-body MRI (skeletal muscle mass) and 4C model (fat mass) ensures reliable and medically relevant results. The cloud-based software takes on all administrative tasks for you, thus allowing full focus on your patients. The handrail with fixed grip positions guarantees the reproducibility of the measurement conditions
Precision
- Basic
- Advanced
- Premium
Key-Technical Data
BIA measuring method8-point Bioelectrical Impedance Analysis
BIA measurement segmentsRight arm, left arm, right leg, left leg, right half of body, left half of body, torso
BIA measuring period24 seconds
BIA measuring frequency1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
Scope of Delivery
- BIA platform seca mBCA 552
- BIA handrail seca mBCA 549
- ID-Display™
- Power adapter
Technical Data
Capacity360 kg
Graduation50 g
Power supplyPower adapter
Turn-off time with power supplyNo switch off
InterfacesEthernet
USB connection option for a reader (e.g. RFID)
Wi-Fi
USB connection option for a reader (e.g. RFID)
Wi-Fi
Softwareseca analytics 125
Optionswithout ultrasonic height measurement
Net weight4.1 sts
26.5 kg
26.5 kg
Product width839 mm
Product height1,280 mm
Product depth653 mm
Platform width600 mm
Platform height70 mm
Platform depth467 mm
BIA measuring method8-point Bioelectrical Impedance Analysis
BIA measurement segmentsRight arm, left arm, right leg, left leg, right half of body, left half of body, torso
BIA measuring period24 seconds
BIA measuring frequency1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
BIA measuring electricity100 µA
Age5 - 99 years
Body heightmin. 130 cm
Functions and Properties
- Display of user and patient name or ID
- Display date of birth patient
- TARE
- Pre-TARE
- HOLD
- Auto-HOLD
- CLEAR
- Auto-CLEAR
- RESET
- kg/lbs switch-over
- Adjustable damping
- BMI
- Standby mode
- Wi-Fi
- Ethernet
- 8 point measurement
- Confirm button
- Acoustic signals can be activated
- Customizable shortcut buttons
- Backlighting
