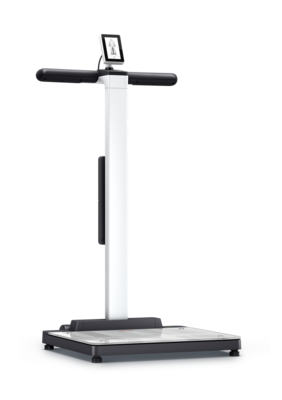

seca mBCA Alpha
Class III medically approved Product Number ONIGMANTNNMedical Body Composition Analyzer with gold standard validation
available in June 2025
Quick Overview
Description
Technical Data
Precision
- Basic
- Advanced
- Premium
Key-Technical Data
BIA measuring method8-point Bioelectrical Impedance Analysis
BIA measurement segmentsRight arm, left arm, right leg, left leg, right half of body, left half of body, torso
BIA measuring period24 seconds
BIA measuring frequency1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
Scope of Delivery

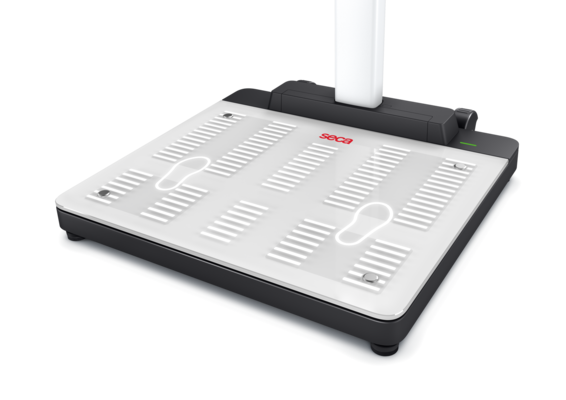

- BIA platform seca mBCA 555
- BIA handle seca mBCA 545
Product Properties
- Move beyond the limitations of BMI and gain medically validated insights into your patient’s body composition in just seconds
- Unmatched precision through gold standard validation: whole-body MRI for skeletal muscle mass and the 4C model for fat mass
- All validation studies have been published in peer-reviewed journals, including the European Journal of Clinical Nutrition
- Comprehensive, personalized normal ranges based on over 3,000 multiethnic subjects
- Specially developed formulas for children over 5 years and 1.30 m as well as people over 65 years and patients with obesity

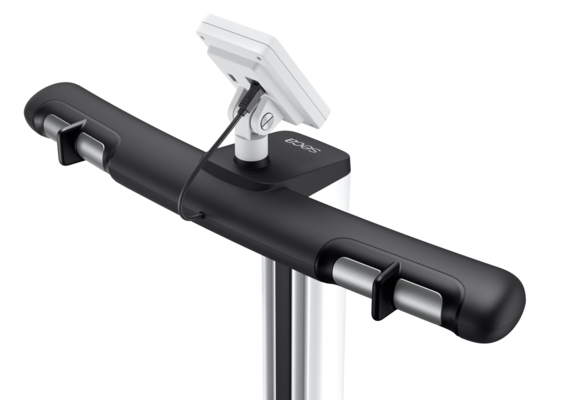

- Fixed handle electrodes ensure consistent hand positioning, enhancing reproducibility of the results
- Fast and secure cloud-based software with easy-to-read visuals, customizable templates, treatment tracker module (additional fees apply)
- Includes seca myAnalytics app: patients can track their body composition anytime, anywhere – visualizing progress to boost motivation and engagement
The Game Changer in Patient Care
Imagine seeing inside your patient’s body – clearly understanding what it’s made of and what’s putting health at risk. With the seca mBCA Alpha, that insight is just a step away. In seconds, it delivers a clinically validated, in-depth analysis of body composition – clear, precise, and easy to understand. With meaningful metrics like skeletal muscle mass, visceral fat, and phase angle, you gain the clarity to guide therapy, personalize care, and make informed decisions – moving far beyond BMI and assumptions.
Precision
- Basic
- Advanced
- Premium
Key-Technical Data
BIA measuring method8-point Bioelectrical Impedance Analysis
BIA measurement segmentsRight arm, left arm, right leg, left leg, right half of body, left half of body, torso
BIA measuring period24 seconds
BIA measuring frequency1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
Scope of Delivery
- BIA platform seca mBCA 555
- BIA handle seca mBCA 545
Technical Data
Capacity300 kg
Graduation50 g < 150 kg > 100 g
Power supplyPower adapter
Turn-off time with power supplyNo switch off
InterfacesEthernet
USB for barcode scanner
Wi-Fi
USB for barcode scanner
Wi-Fi

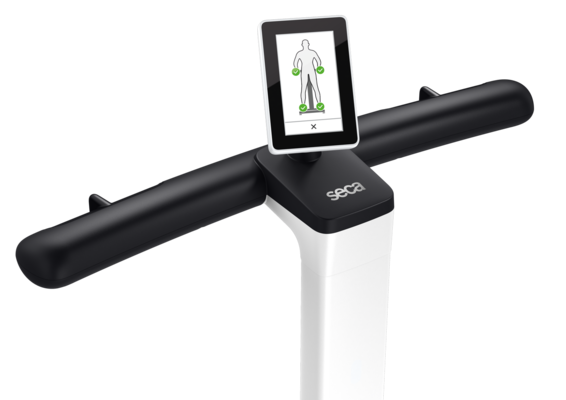

Display4.3" tiltable and rotatable touchscreen
Softwareseca analytics 125
Net weight3.3 sts
20.8 kg
20.8 kg
Product width600 mm
Product height1,233 mm
Product depth653 mm
Platform width600 mm
Platform height70 mm
Platform depth467 mm
BIA measuring method8-point Bioelectrical Impedance Analysis
BIA measurement segmentsRight arm, left arm, right leg, left leg, right half of body, left half of body, torso
BIA measuring period24 seconds
BIA measuring frequency1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
BIA measuring electricity100 µA
Electrode typeverchromter_Kunststoff
Age5 - 99 years
Body heightmin. 130 cm
Functions and Properties
- Display of user and patient name or ID
- Display date of birth patient
- TARE
- Pre-TARE
- HOLD
- Auto-HOLD
- CLEAR
- Auto-CLEAR
- RESET
- Automatic weighing range switch-over
- Adjustable damping
- BMI
- Auto-BMI
- Standby mode
- Wi-Fi
- Ethernet
- 8 point measurement
- Multi-frequent measurement
- Body Fat / Body Water Measurement
- Confirm button
- Acoustic signals can be activated
- Wireless
- Backlighting
