seca 657 r
Class III medically approved Product Number 657 7921 193Platform scale with RS-232 interface for stretchers
Dispatched within 1-3 working days
Quick Overview
Description
Technical Data
Accessories
Precision
- Basic
- Advanced
- Premium
Key-Technical Data
Capacity300 kg
Graduation100 g < 200 kg > 200 g
Net weight7.3 sts
46.2 kg
46.2 kg
Product width910 mm
Product height93 mm
Product depth1,680 mm
Scope of Delivery
- Power adapter
- two access ramps
Product Properties
- Weigh patients quickly and safely while lying down on the stretcher
- Stable construction with very high capacity

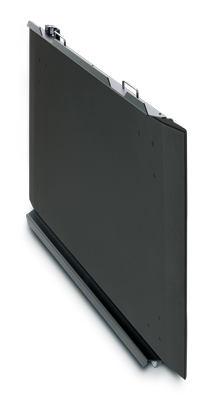

- Transportable due to wheels and integrated handles
- Pre-TARE function for determining precise weight of patient
- EMR-validated: transmit measured data directly to an electronic medical record system or printer
- With RS-232 interface for transmitting weighing results
Precise weighing in any situation

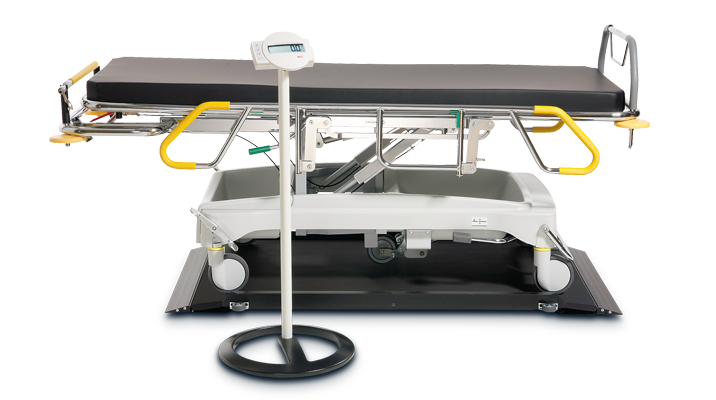

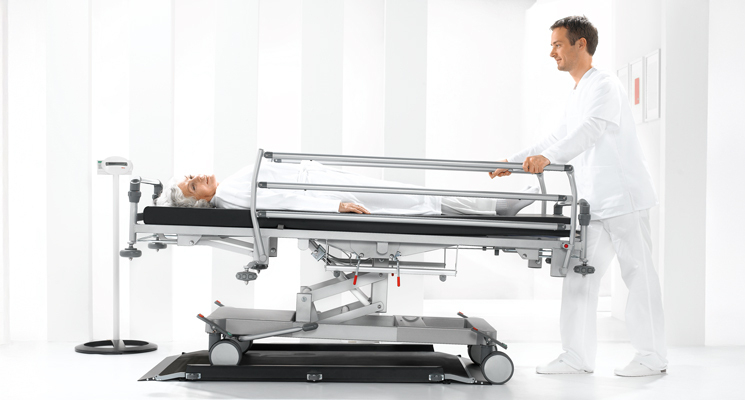

Using the extra-large and flat platform of the seca 657 r, you can weigh patients directly on the stretcher. This speeds up the treatment and saves unnecessary re-bedding. The weight of three different aids can be saved with the Pre-TARE function. This way, you can determine the net weight at the touch of a button during weighing. With the handles and transport castors, the scale is also mobile and can be stowed away in a space-saving manner.
Precision
- Basic
- Advanced
- Premium
Key-Technical Data
Capacity300 kg
Graduation100 g < 200 kg > 200 g
Net weight7.3 sts
46.2 kg
46.2 kg
Product width910 mm
Product height93 mm
Product depth1,680 mm
Scope of Delivery
- Power adapter
- two access ramps
Technical Data
Turn-off time with power supplyNo switch off
Accuracy of the first calibration± 50 g < 50 kg > ± 100 g
Capacity300 kg
TARE-Range300 kg
Graduation100 g < 200 kg > 200 g
Power supplyPower adapter
InterfacesRS-232
Net weight7.3 sts
46.2 kg
46.2 kg
Digit size25 mm
Product width910 mm
Product height93 mm
Product depth1,680 mm
Platform width800 mm
Platform height55 mm
Platform depth1,465 mm
Cable length2.7 m
Ramp2 x integrated
Functions and Properties
- TARE
- Pre-TARE
- HOLD
- Auto-HOLD
- Auto-CLEAR
- RESET
- Automatic weighing range switch-over
- Adjustable damping
- BMI
