seca Scale up Line - <div>EMR-validated ultrasonic measuring station with ID-Display and optional handrail</div> #0
seca Scale up Line - <div>EMR-validated ultrasonic measuring station with ID-Display and optional handrail</div> #1
seca Scale up Line - <div>EMR-validated ultrasonic measuring station with ID-Display and optional handrail</div> #2

seca Scale up Line

Class III medically approved Product Number ONSMMAUTNN

<div>EMR-validated ultrasonic measuring station with ID-Display and optional handrail</div>

seca Scale up Line
translation missing: en_GB.products.view.delivery_download
Request Pricing
Quick Overview

Precision

  • Basic
  • Advanced
  • Premium

Key-Technical Data

Net weight3.4 sts
22.0 kg
Product width600 mm
Product height2,387 mm
Product depth614 mm
Graduation50 g < 150 kg > 100 g
Capacity300 kg

Scope of Delivery

  • ID-Display
  • Mains adapter
  • flat scale seca 655
  • ultrasonic height measurement seca 257
Description

Product Properties

  • Display shows name or identification number (ID) of users and patients for increased safety
  • Data transmission controlled by touchscreen display
  • Outstanding precision and high-speed measuring thanks to perfected ultrasound technology
  • Large platform made of tested seca Bearclaw Glass® for absolute breakage resistance and perfect hygiene
  • Illuminated LED footprints in the weighing platform show patients the correct standing position for accurate height measurement
  • Voice guidance to support the measurement process
  • Optional: Safe weighing with sturdy handrail
  • EMR-validated: transmit measured data directly to any Electronic Medical Record (EMR) system

Precision

  • Basic
  • Advanced
  • Premium

Key-Technical Data

Net weight3.4 sts
22.0 kg
Product width600 mm
Product height2,387 mm
Product depth614 mm
Graduation50 g < 150 kg > 100 g
Capacity300 kg

Functions and Properties

Scope of Delivery

  • ID-Display
  • Mains adapter
  • flat scale seca 655
  • ultrasonic height measurement seca 257
Technical Data

Technical Data

Optionswith ultrasonic height measurement
Net weight3.4 sts
22.0 kg
Measuring range100 - 220 cm
Platform width600 mm
Platform height70 mm
Platform depth467 mm
Product width600 mm
Product height2,387 mm
Product depth614 mm
PortsLAN
USB bar code scanner
Wi-Fi
Power supplyMains adapter
Graduation50 g < 150 kg > 100 g
Graduation measuring range1 mm
Capacity300 kg
Measuring range with attached hand rail{0=>nil, 1=>nil}

Functions and Properties

  • EMR ready
  • Wi-Fi
  • Acoustic signals can be activated
  • Auto-BMI
  • Auto-clear
  • Auto-HOLD
  • Automatic weighing range switch-over
  • Extra rugged
  • Confirm button
  • Clear
  • Adjustable damping
  • Backlighting
  • HOLD
  • Mother/child function
  • Pre-TARE
  • RESET
  • TARE

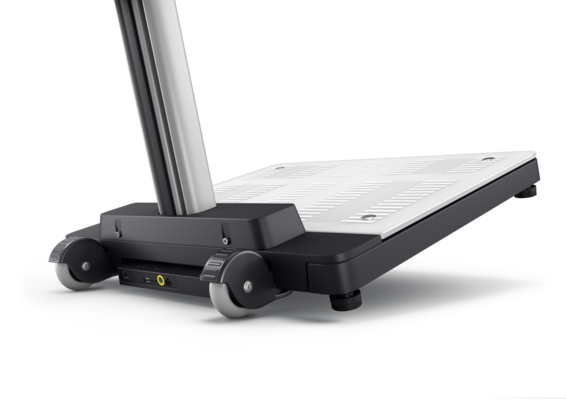

  • Transport castors
  • function_anzeige_patientenname_datum
  • function_anzeige_user_name
  • BSA (body surface area)
  • function_dreh_und_kippbares_display
  • LAN
  • standby mode
  • Touch-display
